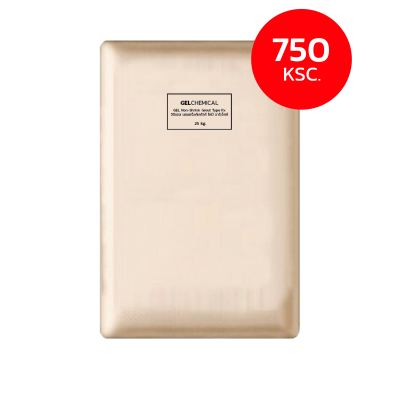

GEL Non Shrink Grout Type Rx (25 kg.)

GEL Non Shrink Grout Type Rx (25 kg.)

Compressive strength is 400 ksc (Cu) in 1 day and 750 ksc (Cu) in 28 days

Package 25 kg.

Introduction

High performance type of non-shrink grout cement, good flow ability with high early and high ultimate strength.

Applications

• General concrete repair

• Concrete structure repair such as column, beam and concrete slab

• Cast the base for supporting column, bridge structure or crane's rail

• Fill the gap, such as foundation or concrete formwork

• Precast wall installation

• Work which is required greater strength than general concrete

• Work which is required early high strength

• Cast a support base for small or medium machinery foundation

Features

• Non-bleeding

• Controlled expansion / non-shrinkage

• Non-metallic, non-rusting and chloride free

• Good flow ability

• Non-air void

• High compressive strength

• High early and high ultimate strength. Compressive strength is 400 ksc (Cu) in 1 day and 750 ksc (Cu) in 28 days

Application procedure

• Surface preparation
  • In case of general grout, fill the joint between precast or cast the base for supporting machinery, it can be proceed the next step
  • In case of repair work, the existing concrete surface must be removed 1-2 cm. depth or deep until stone layer before continuing next step
• Clean concrete surfaces by using water or blowing air
• Install concrete formwork to be strong and without leakage
• Use water to keep concrete saturated at least 6 hours
• Before starting work, drain water out and blow the air for cleaning concrete surface
• Pour cement grout from one side to the other side by continuous pouring to prevent the void inside
