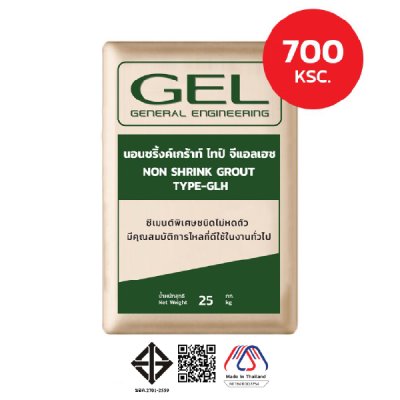

GEL Non Shrink Grout Type GLH (25 kg.)

Non-Shrink Grout Type GLH

Compressive strength is 350 ksc (Cu) in 1 day and 650 ksc (Cu) in 28 days

Package 25 kg.

Introduction

The high performance type of non-shrink grout cement, good flow ability with high early and high ultimate strength for high rise building construction

Applications

• General concrete repair

• Concrete structure repair such as column, beam and road surface
• Cast the base for supporting column, bridge structure or crane's rail

• Fill the gap, such as foundation or concrete formwork

• Precast wall installation

• Work which is required greater strength than general concrete
• Work which is required early high strength
• Cast the base for supporting small machinery
• TIS 2701-2559

Features

• Non-bleeding

• Controlled expansion / non-shrinkage

• Non-metallic, non-rusting and chloride free

• Good flow ability

• Non-air void

• High compressive strength
• High early and high ultimate strength. Compressive strength is 350 ksc (Cu) in 1 day and higher than 650 ksc (Cu) in 28 days

Application procedure

• Surface preparation
  the base for supporting machinery, it can be proceed the next step
  • In case the general grout, fill in the joint between precast or cast of the base for supporting machinery, it can be proceed the next step
  • In case of repair work, the existing concrete surface must be removed 1-2 cm. depth or deep until stone layer before continuing next step
• Clean concrete surfaces by using water or blowing air
• Install concrete formwork to be strong and without leakage
• Use water to keep concrete saturated at least 6 hours
• Before starting work, drain water out and blow the air for cleaning concrete surface
• Pour cement grout from one side to the other side by continuous pouring to prevent the void inside
